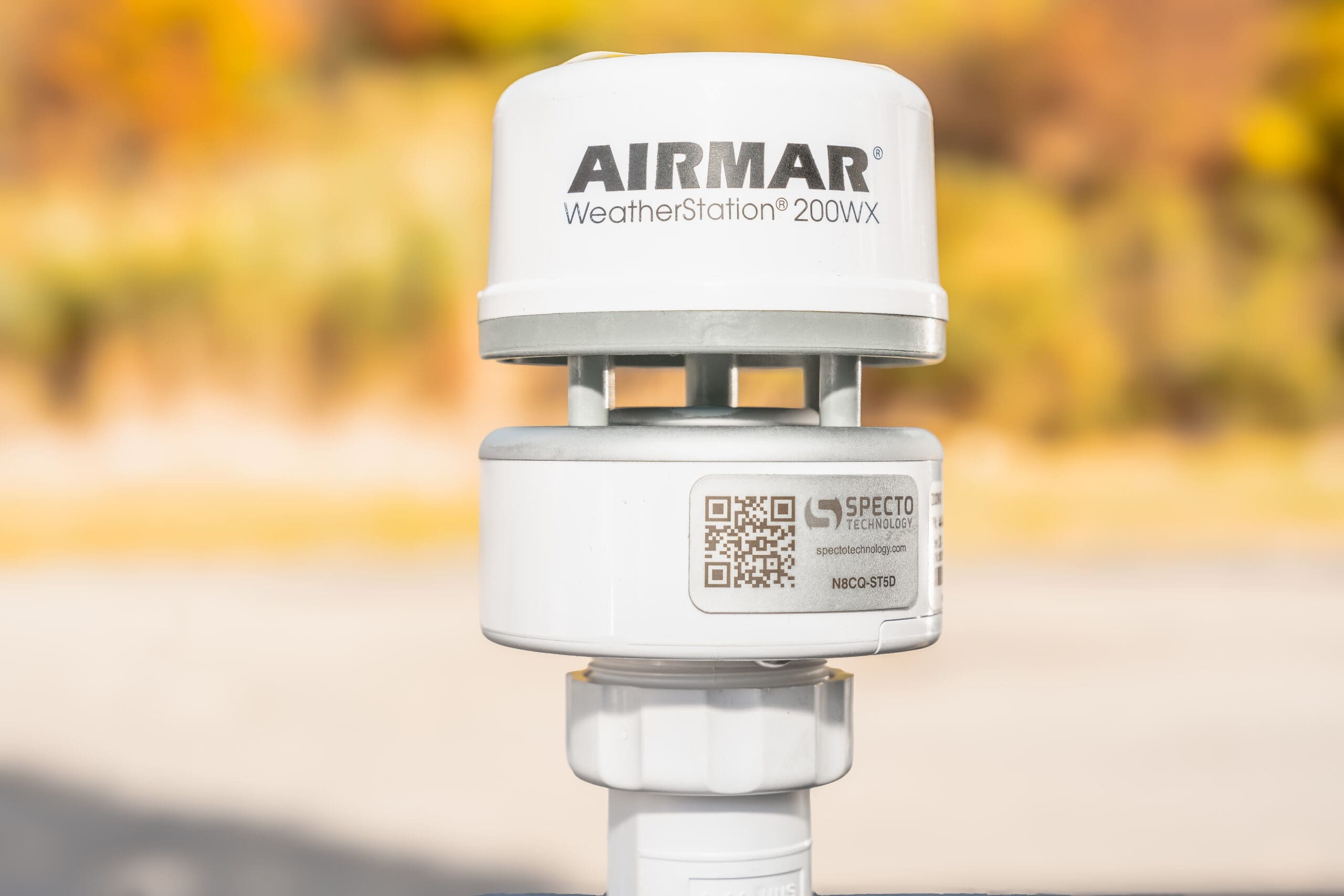

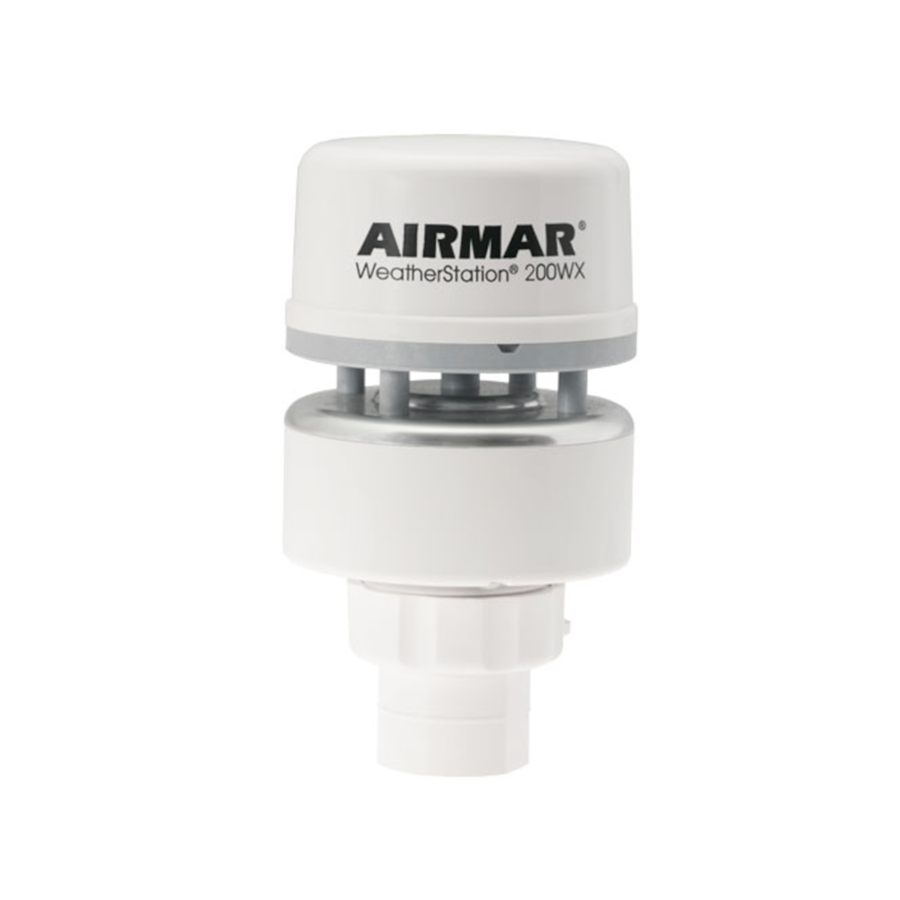

Airmar 200WX Weather Station

Product Information

The Airmar 200WX weather station is a rugged, compact sensor that measures 5 x parameters simultaneously: wind speed, wind direction, barometric pressure, relative humidity & temperature.

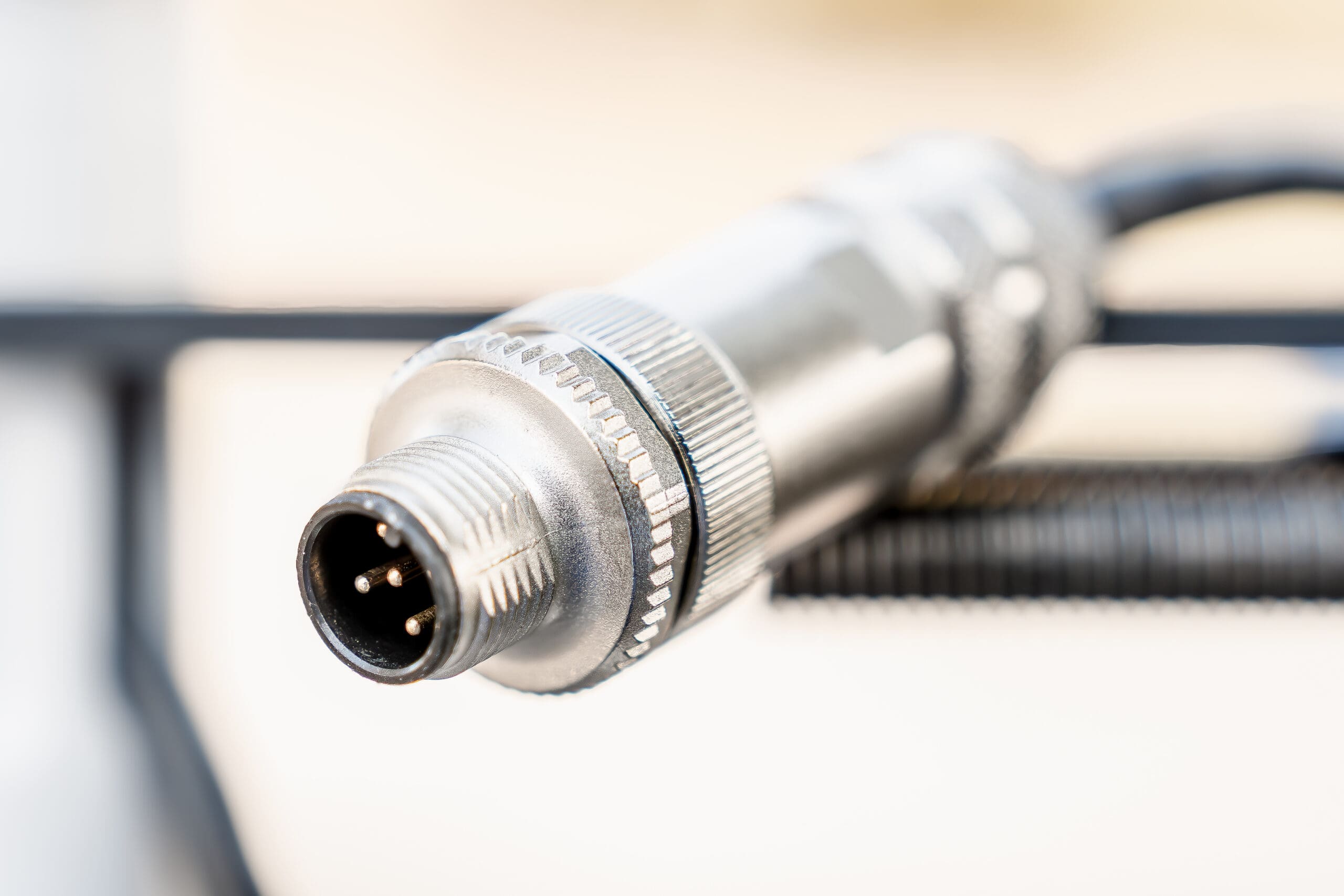

This sensor is compatible with all fixed Aeroqual units, including the Dust Sentry and AQS1. Specto provides a custom cable to allow easy connection between the Airmar and Aeroqual systems. The built-in GPS and compass allow commissioning and monitoring to be streamlined.

PRODUCT FEATURES:

• Ultrasonic measurement of apparent and Dynamic true wind speed and direction
• Barometric pressure
• Air and wind chill temperature
• Relative humidity (field serviceable option)
• Calculated dew point and heat index
• GPS position, speed over ground, and course over ground
• Three-axis, solid-state compass with dynamic stabilization
• Three-axis rate gyro supplies rate-of–turn data
• Three-axis accelerometer for best-in-class pitch and roll information
• Housing IPX6 rated for water-ingress protection
• Data output via a single cable (various lengths available)
• NMEA 0183/ASCII serial data protocol over RS-232 interface
• Air Temp Accuracy: ±1.1°C at 20°C
• Air Temp Range: -40 to 80°C (-40 to 176°F)
• Air Temp Resolution: 0.1°C
• Apparent Wind Speed Angle: Yes
• Barometric Pressure Accuracy: ±0.5 hPa at 25°C (or better)
• Barometric Pressure Range: 300 to 1100 hPa
• Barometric Pressure Resolution: 0.1 hPa
• Certs And Standards: CE, IPX6 (IPX4 with optional Relative Humidity sensor), RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
• Communications Available Hardware Interface: Serial RS-232, Serial RS-422, CAN
• GPS Position Accuracy: 3 m (10′) CEP

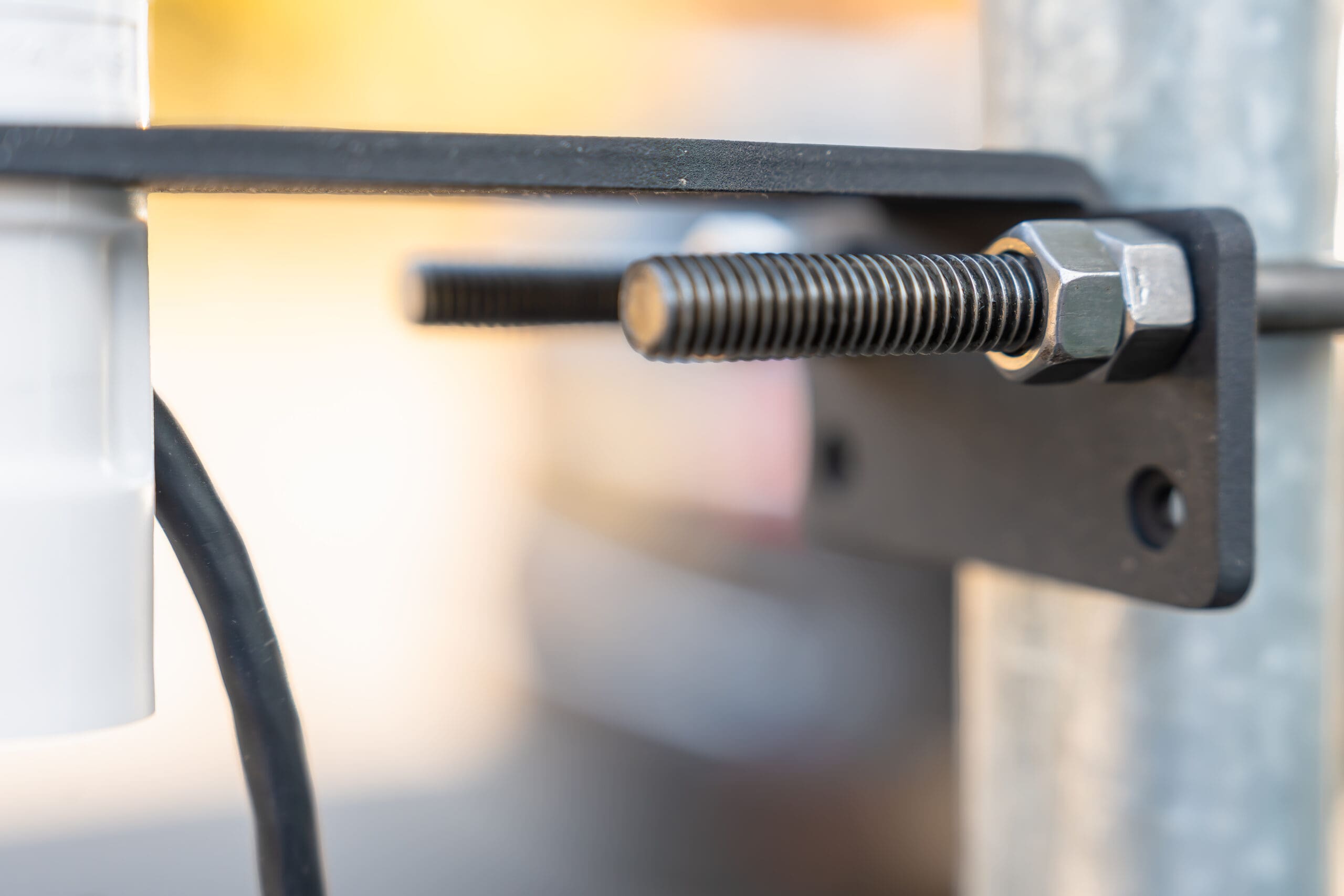

• Mounting Thread: Standard 1”-14 UNS (3/4” NPT optional)
• Note: Cables sold separately
• Operating Temp Range: -25 to 55°C (-13 to 131°F)
• Optional RH Accuracy: ±5% RH at 0 to 90% RH at 20°C
• Optional RH Range: 0 to 100% RH
• Optional RH Resolution: 0.1% RH
• Power Supply Current: <75 mA (<0.9 W) at 12 VDC
• Power Supply Voltage: 9 to 40 VDC
• Recommend Use: Marine or Land-Based, Mobile or Stationary
• Theoretical Wind Speed and Direction: Yes
• Three Axis Compass Dynamic Heading Accuracy: 2° dynamic heading accuracy
• Three Axis Compass Range: 0 to 359.9°
• Three Axis Compass Static Heading Accuracy: 1° static heading accuracy
• True Wind Speed and Direction: Yes
• Waterproof Rating: IPX6 (Relative Humidity/IPX4)
• Weight: 300 g (0.7 lb.)
• Wind Direction Accuracy: ±3° at 10 m/s
• Wind Direction Calculations: User configurable damping
• Wind Direction Range: 0° to 359.9°
• Wind Direction Resolution: 0.1°
• Wind Speed Accuracy: 5% at 10 m/s at 4 angles
• Wind Speed Calculations: User configurable damping
• Wind Speed Range: 0 to 40 m/s (0 to 89 MPH)
• Wind Speed Resolution: 0.1 m/s
• Humidity: Optional

PRODUCT BENEFITS:

• Compact size
• Rugged housing
• No moving parts for durability and long maintenance intervals

TYPICAL APPLICATIONS INCLUDE:

• Ultrasonic measurement of apparent and Dynamic true wind speed and direction
• Barometric pressure
• Air and wind chill temperature
• Relative humidity (field serviceable option)
• Calculated dew point and heat index
