Loadsensing Event Detection Tiltmeter

Product Information

High-precision tilt sensing with real-time alert capabilities for early warning systems

Brought to you by Specto Technology, Loadsensing’s Event Detection Tiltmeter is a cutting-edge wireless 3-axis sensor designed to detect critical ground and structural movement with ultra-low latency. Powered by advanced edge processing, the device continuously monitors tilt and instantly transmits alerts when predefined thresholds are exceeded—delivering response times under 2 seconds for the first 10 events. Built for long-term field deployments, this LoRa-enabled sensor offers reliable performance, exceptional battery life, and seamless integration into your existing monitoring platform.

Product Features

• Wireless 2-in-1 sensor and data logger
• 3-axis inclination measurement with ±90° range
• Embedded edge algorithm for anomaly detection and auto-increased sampling frequency
• Under 2-second latency for the first 10 simultaneous alerts
• Configurable thresholds via the Worldsensing App, CMT Edge, or CMT Cloud
• LoRa communication for long-range, low-power data transmission up to 15 km

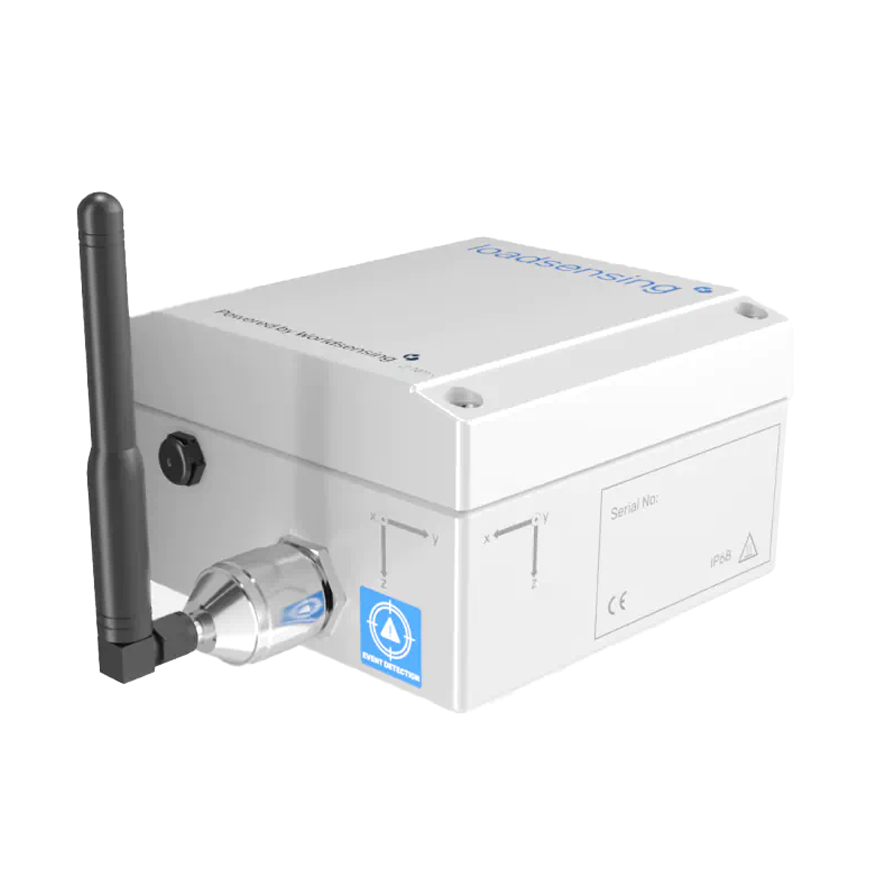

• Internal or external antenna configuration available
• Rugged IP68-rated enclosure with operating ranges from -40°C to +80°C
• Battery-powered with up to 10 years of operation (C-size replaceable batteries)

 Product Benefits

• Rapid Event Detection: Enables quick responses to structural or geotechnical anomalies with near real-time alerts
• Low Maintenance: Robust design and long battery life reduce field visits and maintenance costs
• Easy Configuration: Adjust thresholds and sampling intervals remotely for tailored monitoring
• Seamless Integration: Supports MQTT, API, and FTP for real-time connection with third-party platforms
• Trusted Technology: Built on Worldsensing’s proven Loadsensing platform—ideal for critical infrastructure projects
• Expert Support: Backed by Specto’s experienced team and personalized service

Typical Applications

Structural Health Monitoring

• Measuring cant, twist, and vertical alignment in railway tracks
• Monitoring static deflections of bridge piles, piers, and decks
• Detecting tilt in retaining walls, dams, and tunnel linings

Geotechnical Monitoring

• Identifying slope instability in landslide-prone areas
• Monitoring embankments and earthworks
• Detecting ground movement during deep excavations or foundation shifts
