Trimble Solar Power Kit (standard)

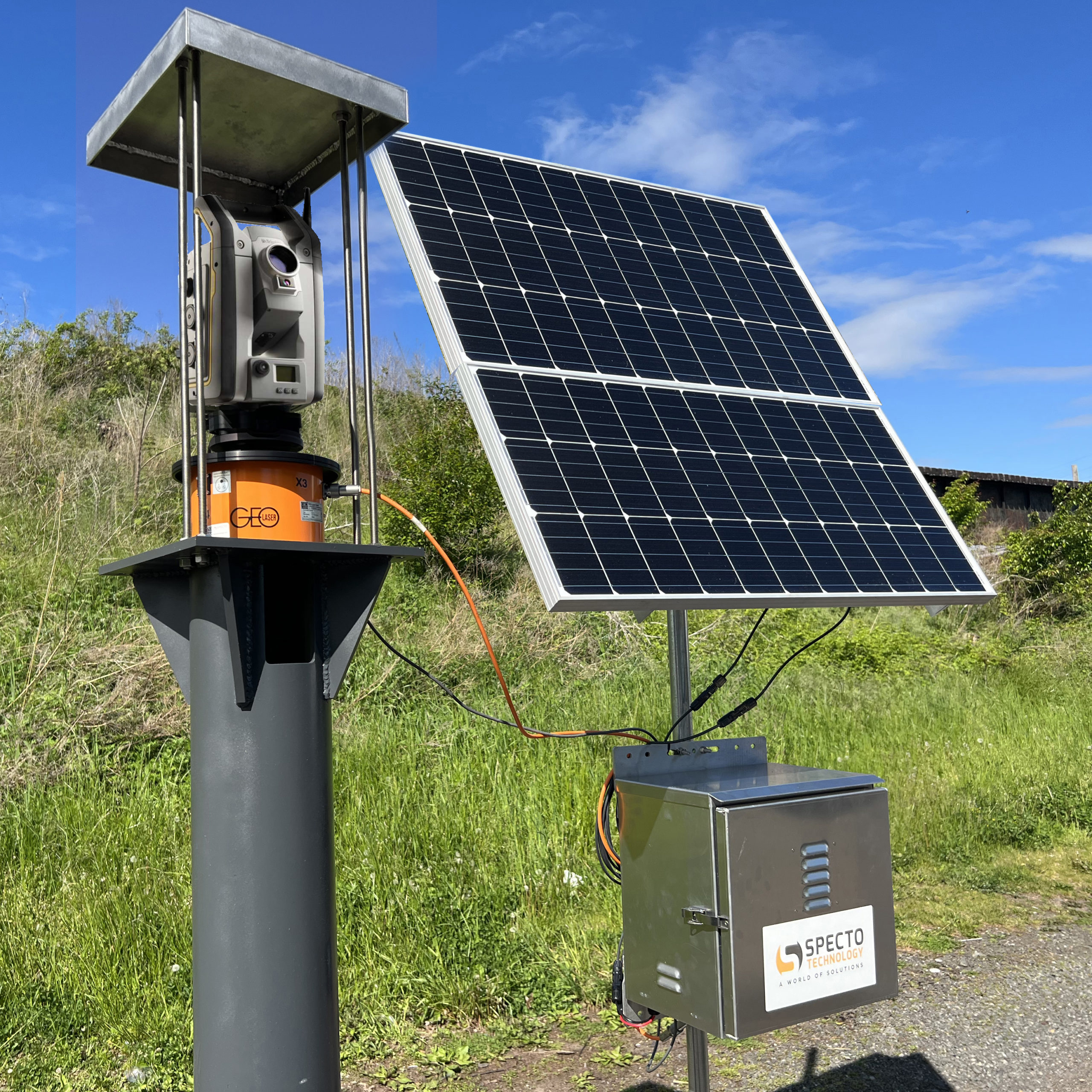

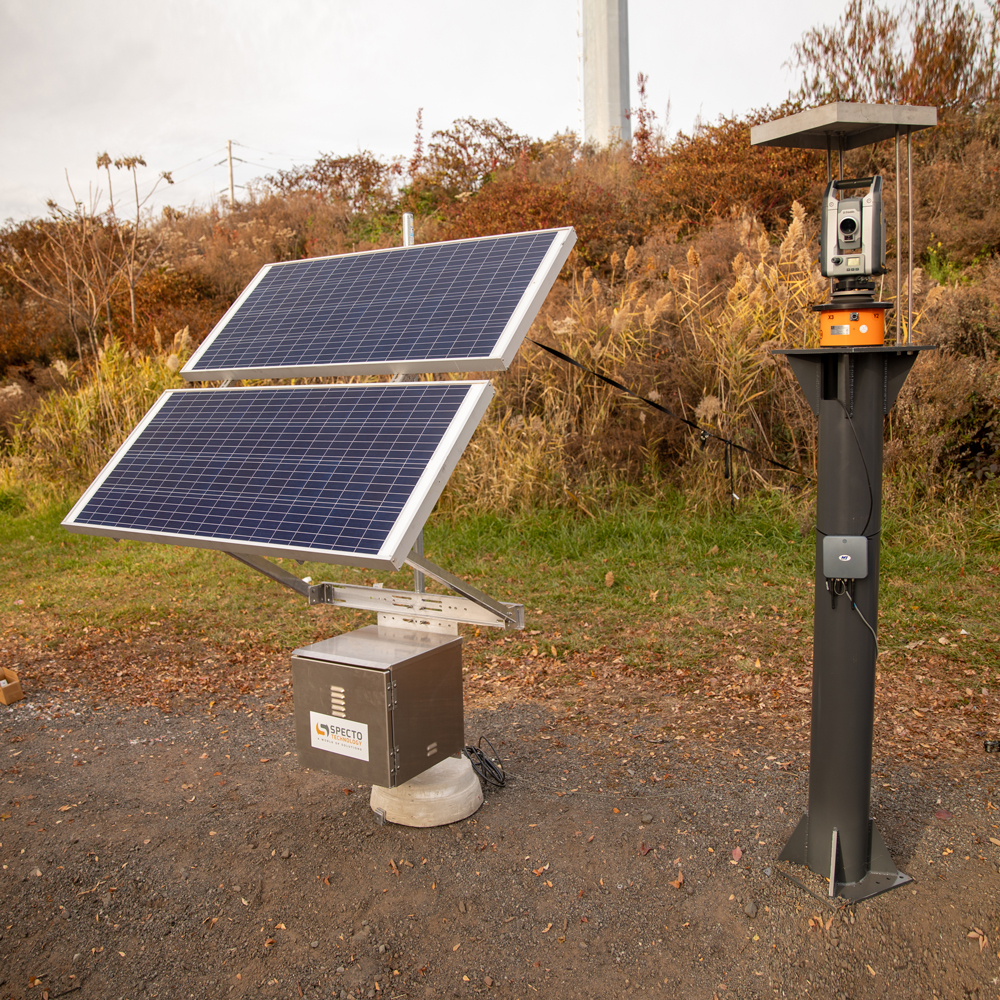

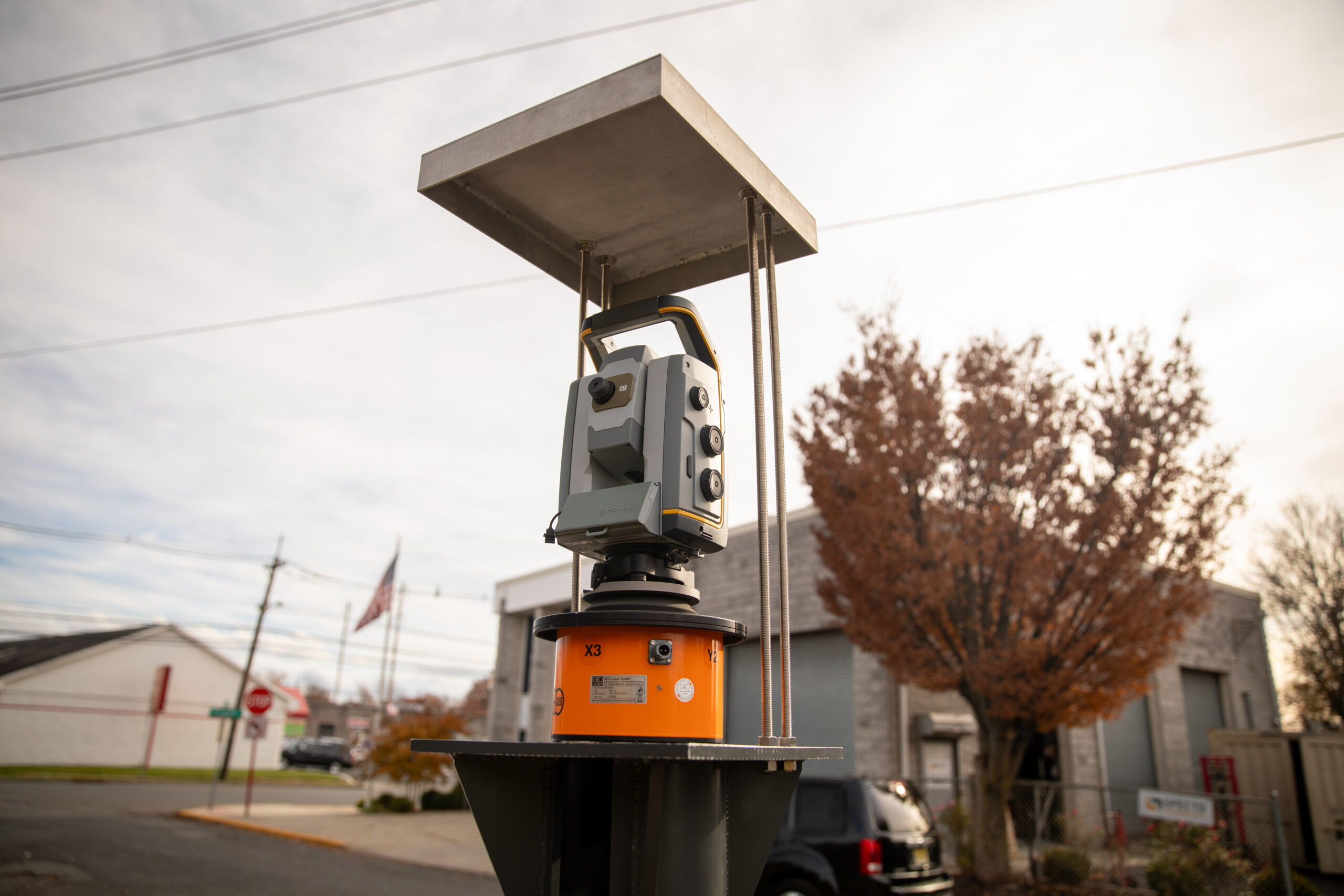

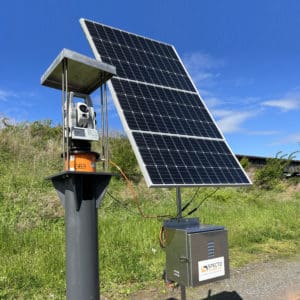

This system has been designed to power a Trimble AMTS with Settop M1 Controller in locations where high solar exposure is available. It comprises of 2 x solar panels and 2 x batteries.
Product Information
This turnkey solar power kit is sized for geographical areas with moderate solar exposure. Utilizing high efficiency components, advanced technology to allow reliable operation and easy troubleshooting and a best-in-class light weight, heavy duty LiFePO4 battery, this system is designed to be mounted to a pole, pillar or wall.
Product Features:

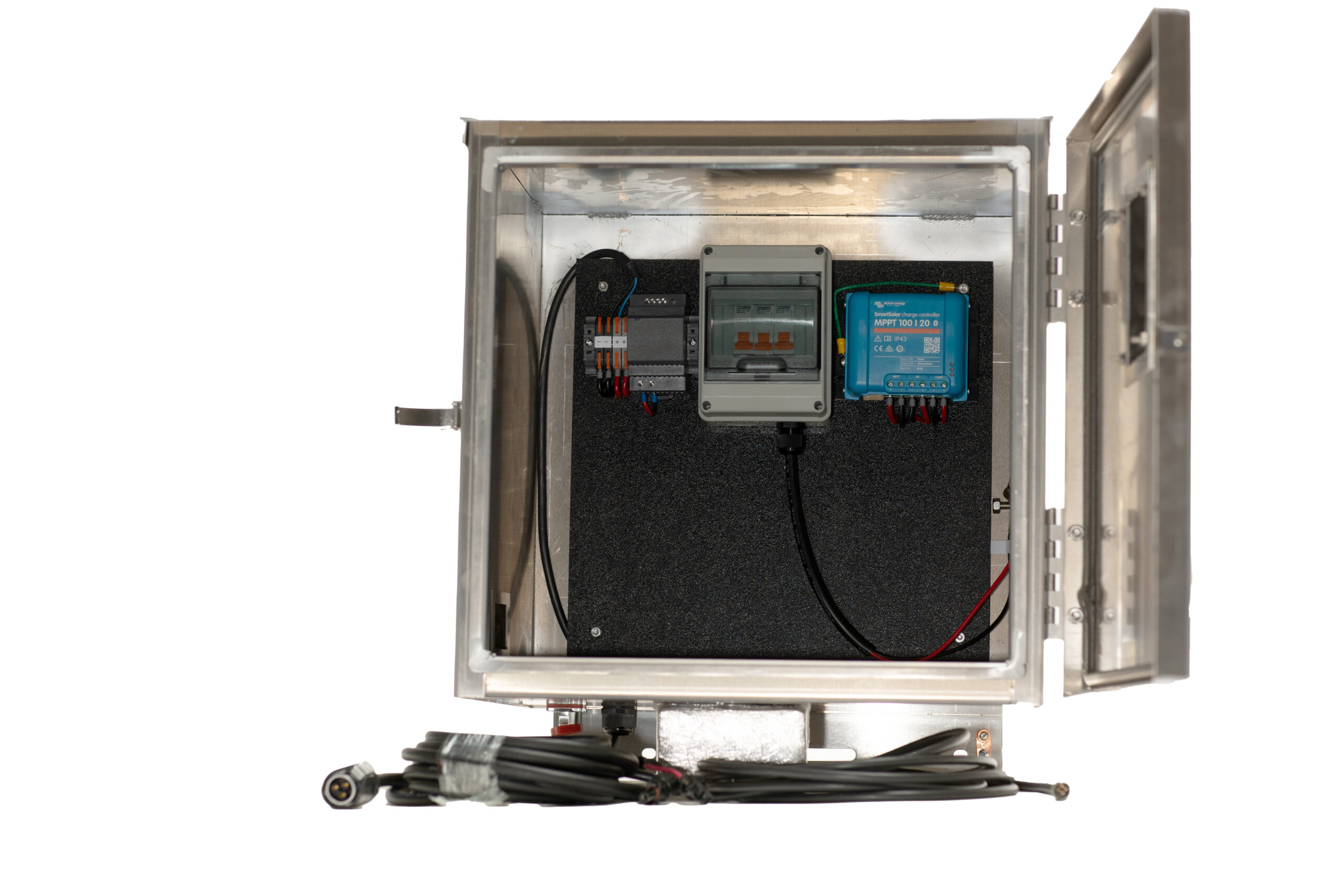

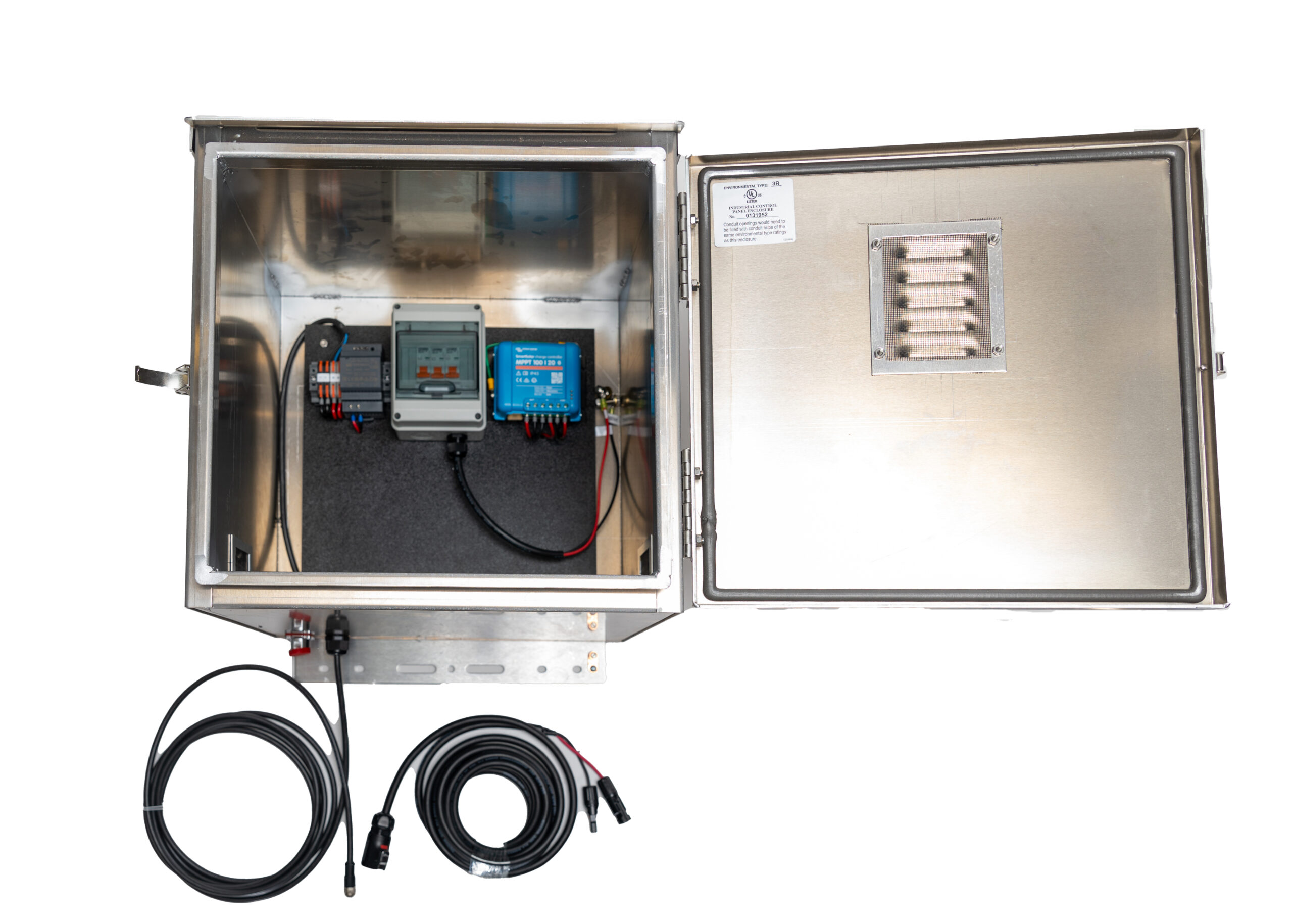

- High capacity/quality MPTT charge controller

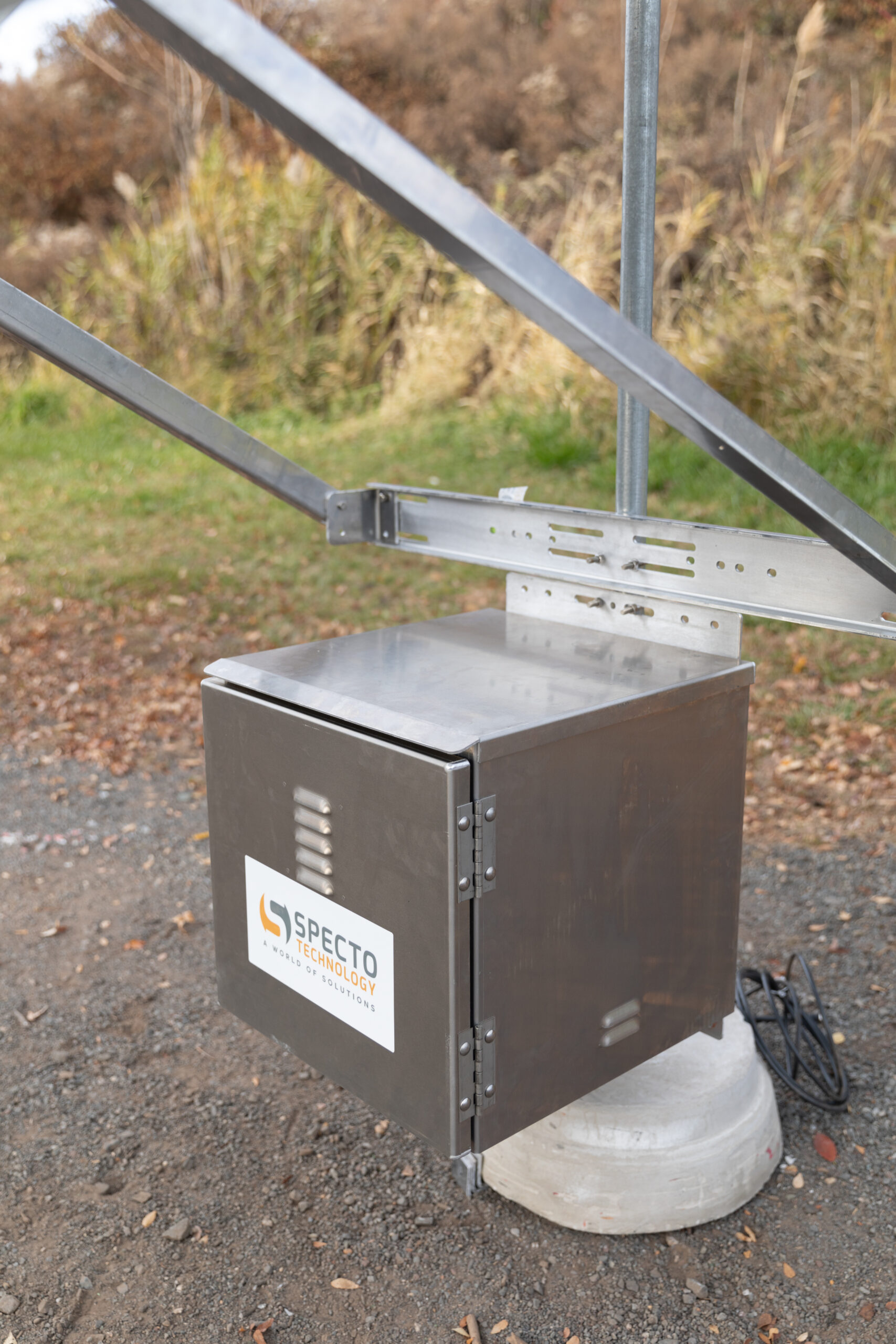

- Mill finished aluminum enclosure
- On-site battery capacity, voltage input/output monitoring
- Pad-lockable latch

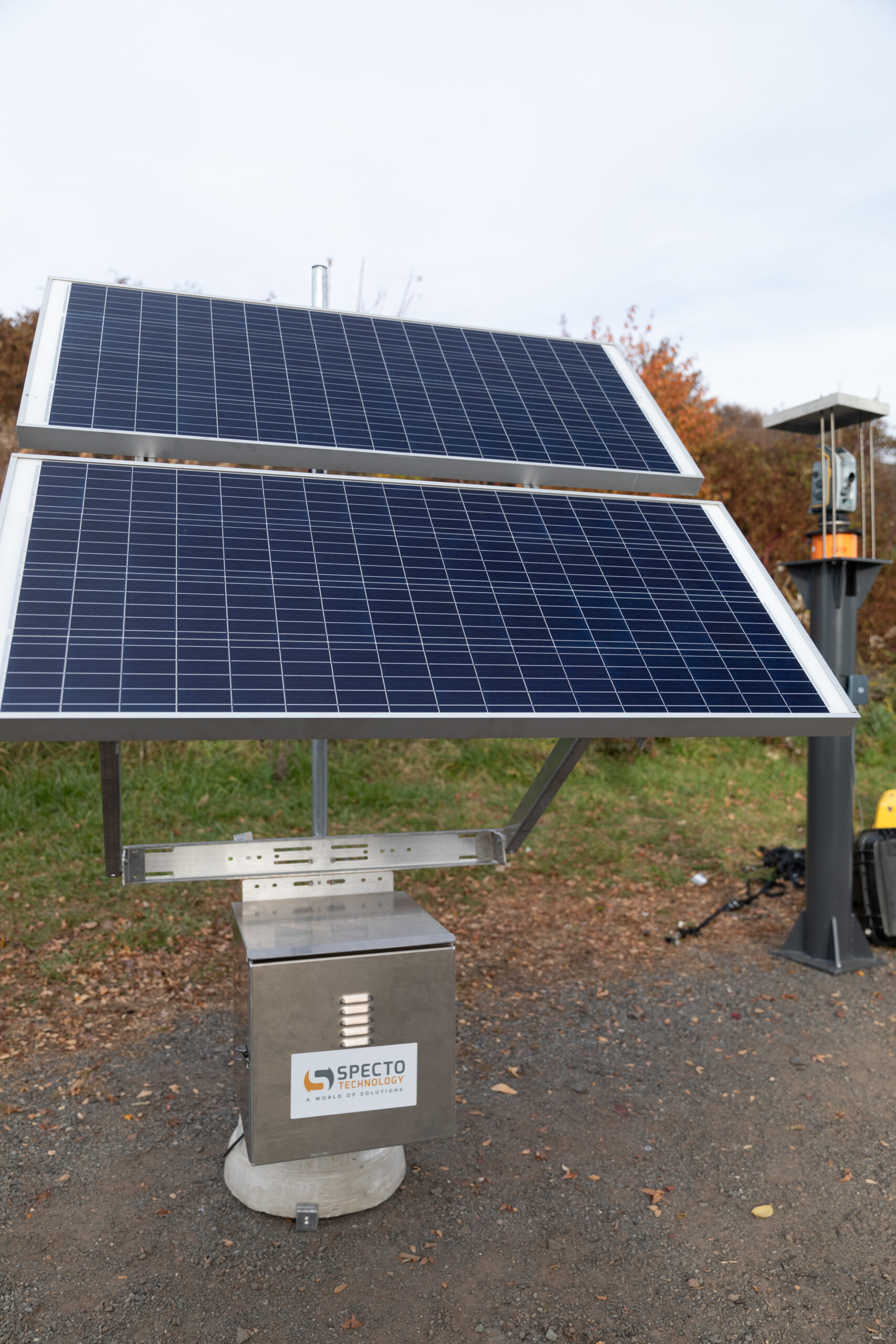

- 2 x 150W 24V Solar Panels

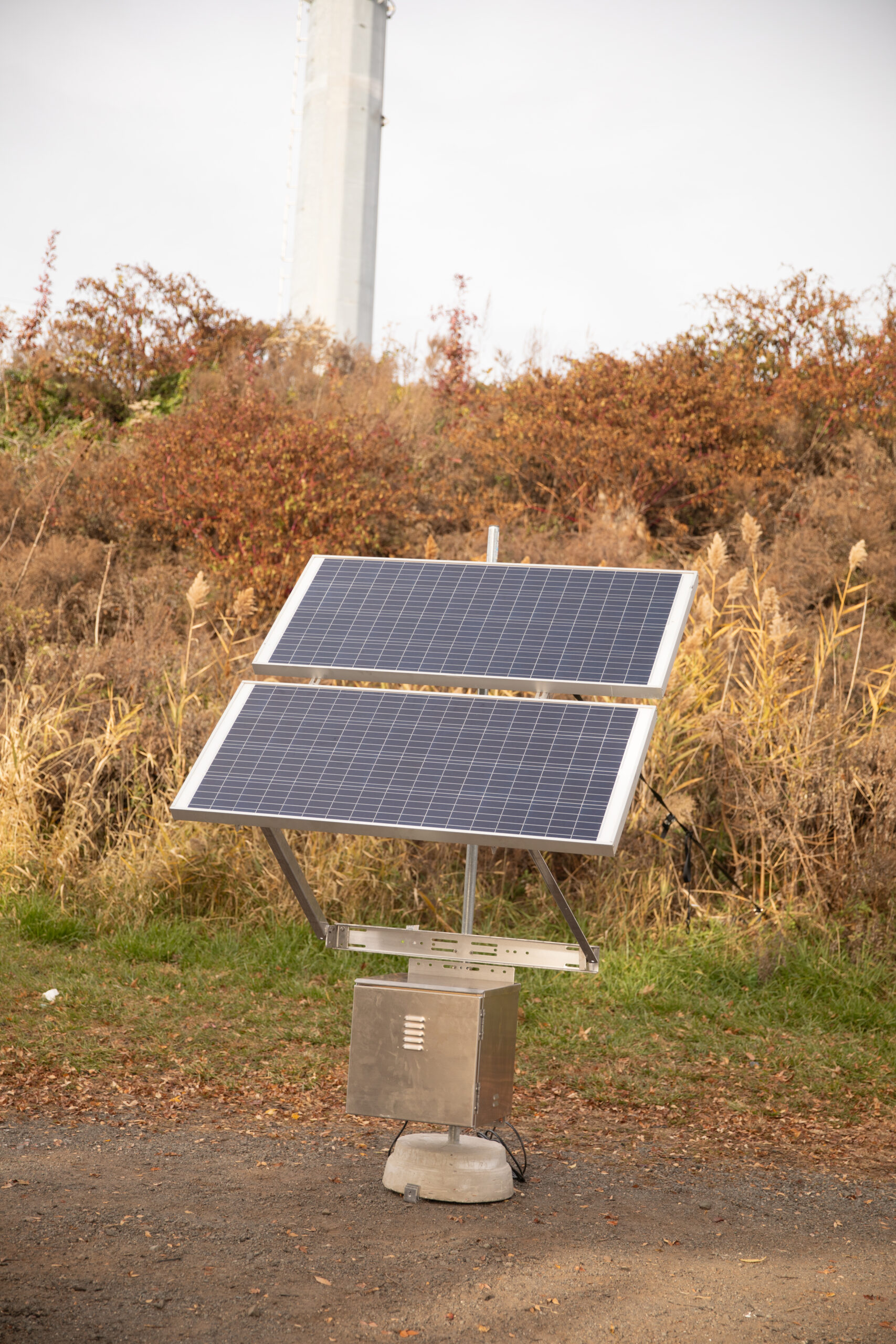

- Pole Mount kit for solar panels
- Solar Controller 20Amp (bluetooth enabled)
- 20ft Extension Cable for Solar Panel
- Circuit breakers & cables

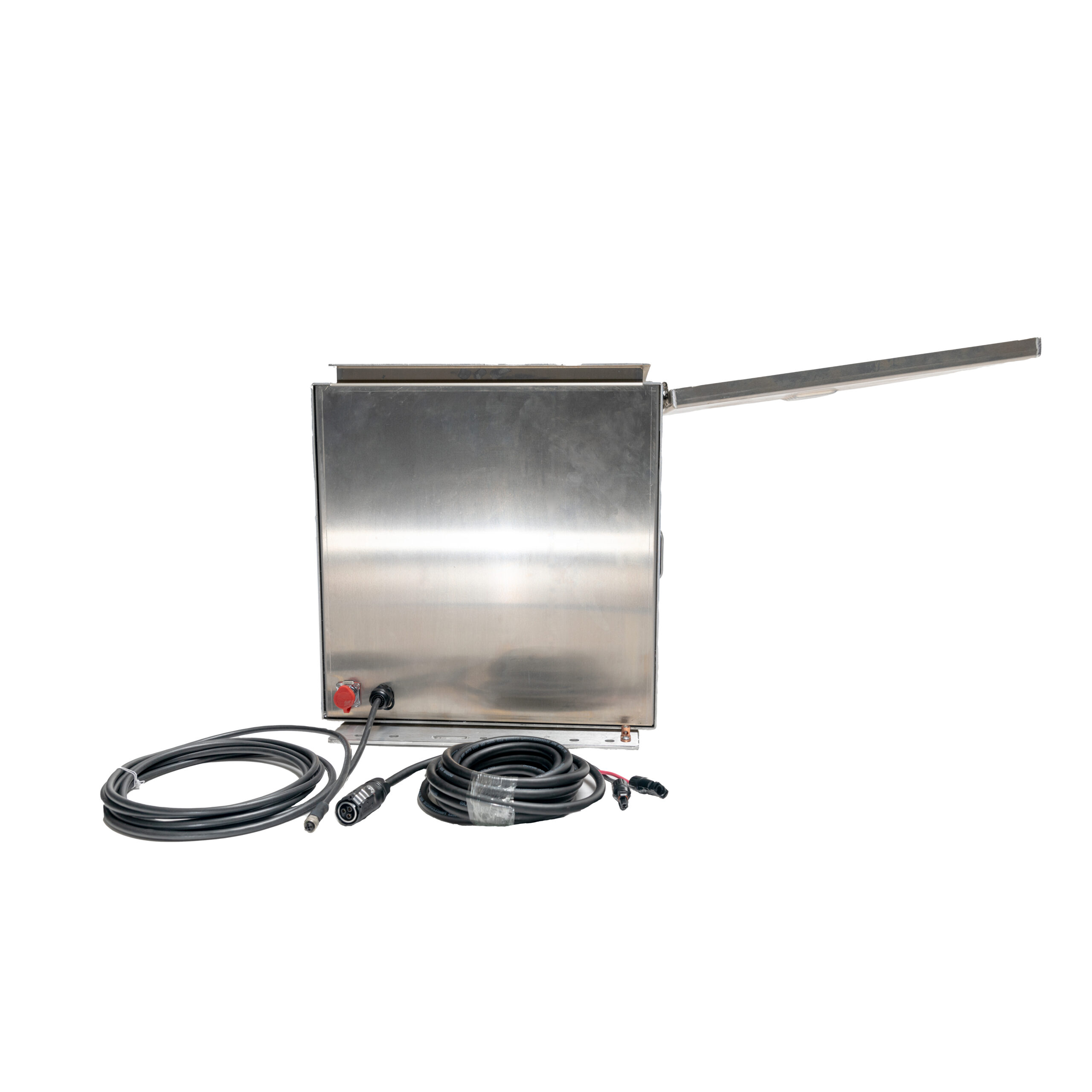

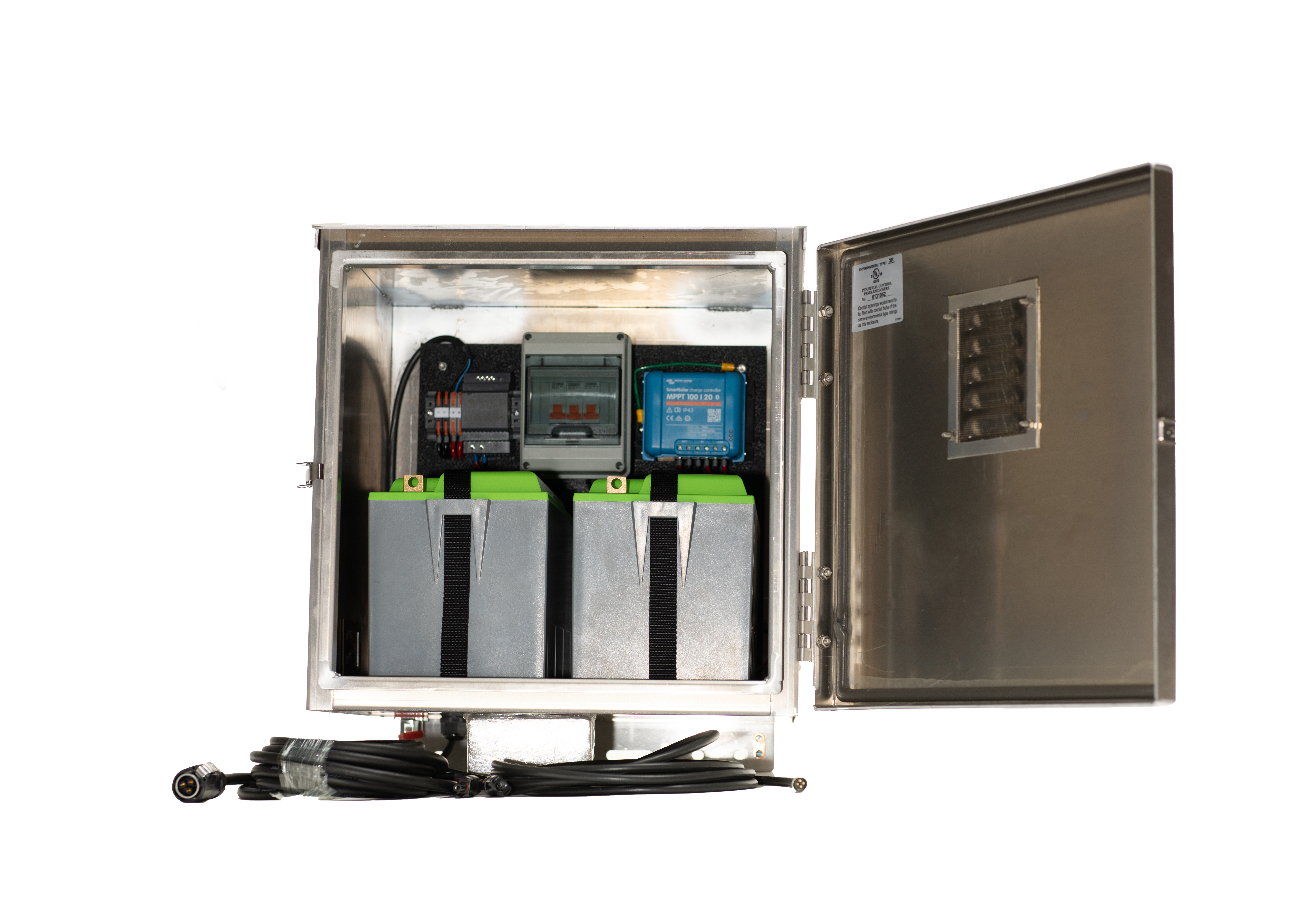

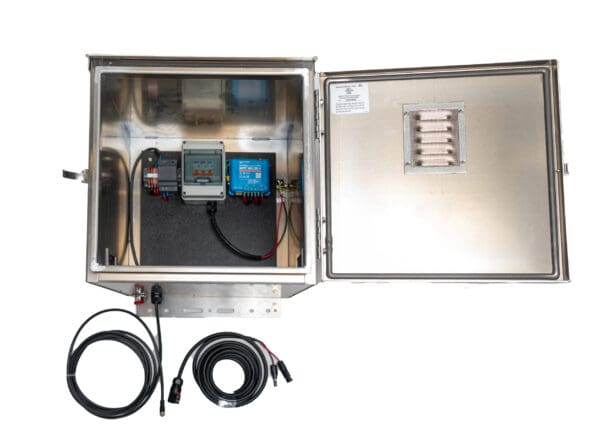

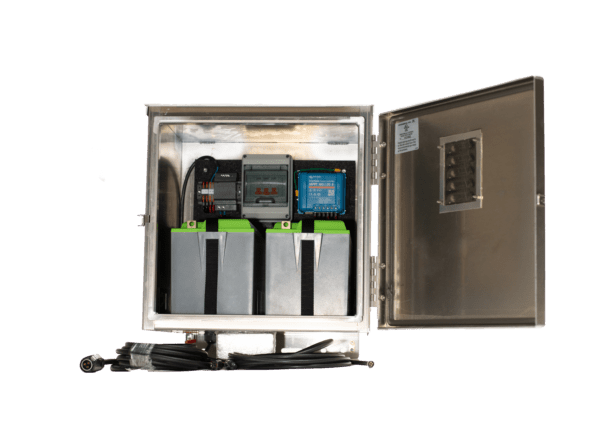

- Aluminum Battery Enclosure
- 2 x 100Ah 12V LiFePO4 deep cycle batteries wired in series

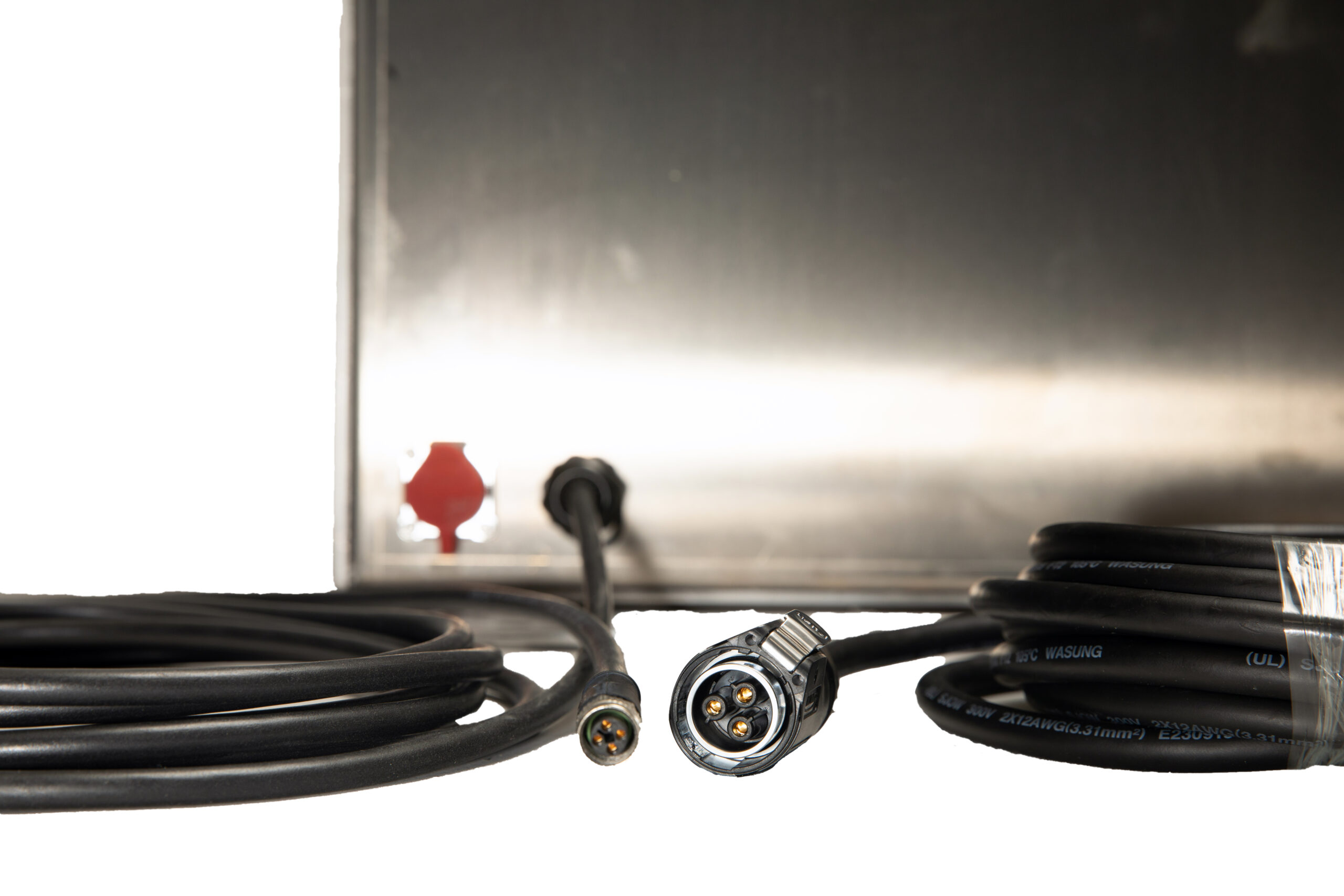

- Cables, Assembled & tested to ensure hassle-free installation
(customer to provide mounting hardware for solar panel bracket and enclosure – e.g. U-bolts)
**Example backup capacity: 50 x prisms read ever 2hrs ~12-days battery backup**
Product Benefits:
- Quick setup time
- Compatible with most data acquisition systems
- Ideal for long-term, outdoor monitoring projects
- Bluetooth app allows detailed system monitoring of charge controller
Typical Applications Include:
- Railway track monitoring
- Bridge and structural health monitoring
- Embankments
- Building response to tunneling and excavation-induced ground movements
- Foundations and deep excavations
- Landslides and slope stability
