Svantek 200A SV Noise Monitoring Station

Product Information

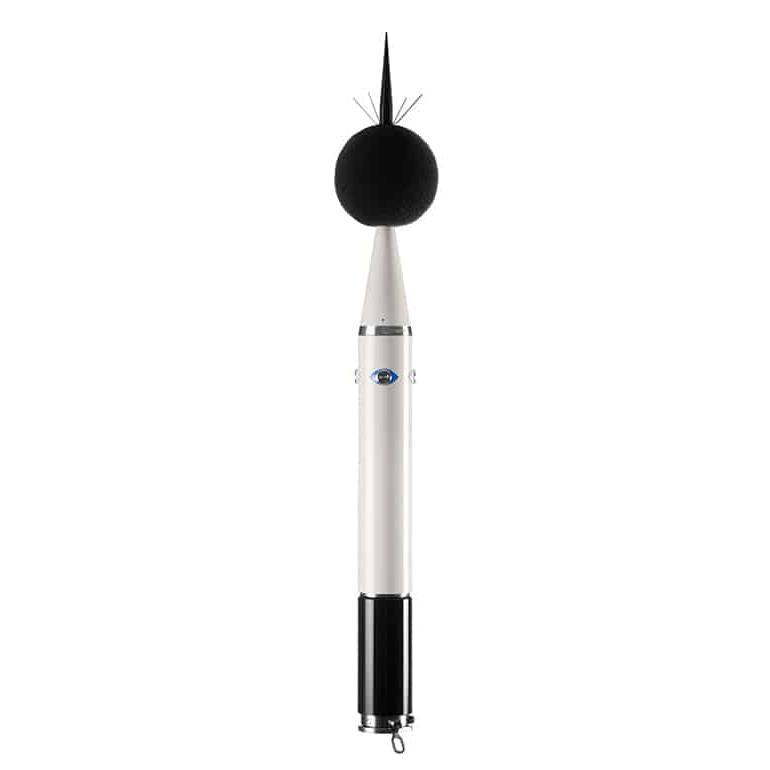

SV200A is a high-end noise monitoring station equipped with built-in microphones for NOISE DIRECTIVITY detection. This innovative solution allows for the identification of dominant noise sources, providing precise information on their location in both vertical and horizontal directions. By measuring noise directionality, the system can pinpoint the main noise source within the monitoring area or exclude unwanted events.

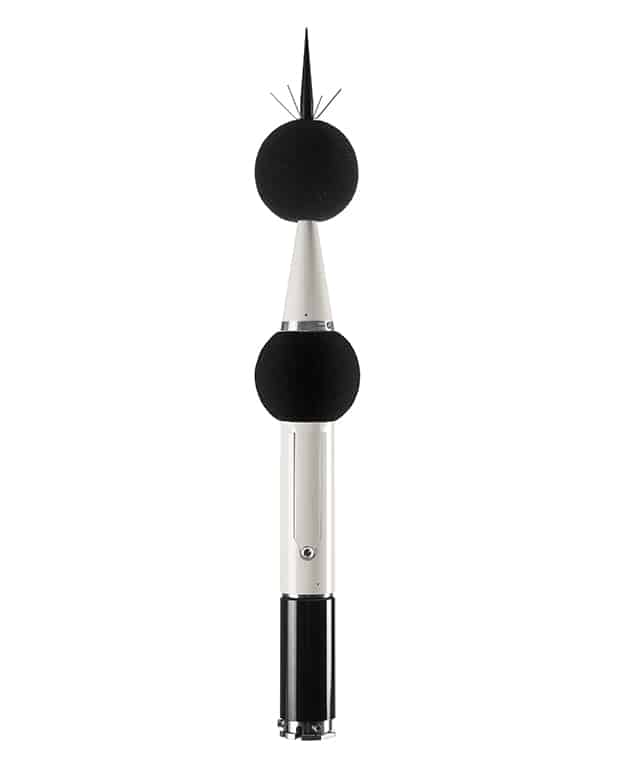

Four additional microphones positioned on the sides of the housing utilize sound intensity techniques to determine the DIRECTION of the DOMINANT NOISE SOURCE along both axes. The Leq distribution across angle sectors is recorded as time-history data, facilitating data filtering and reporting.

The station is capable of real-time frequency analysis in 1/1 and 1/3 OCTAVE bands, storing this data as time-history records. Additionally, it can capture the AUDIO SIGNAL for NOISE SOURCE IDENTIFICATION and data recalculation.

An ADVANCED ALARM system allows for email and SMS notifications based on threshold level conditions combined with time settings. System status alarms are also available.

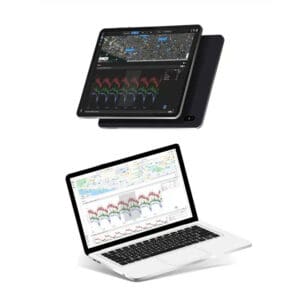

For seamless data transmission, the station features a 4G MODEM, WLAN, and LAN, ensuring fast internet connectivity. SvanNET enables plug-and-play Internet access and efficient measurement project management. Regardless of the SIM card type—Public or Private—SvanNET ensures connectivity, granting full access to measurement data via a WEB BROWSER. Bluetooth® and Wireless LAN provide an access point for easy configuration through the SvanNET Application.

Complying with ISO 1996-2 standards, the SV200A employs an ELECTROSTATIC ACTUATOR for periodic system checks. This method ensures the COMPLETE MEASUREMENT CHAIN, including the microphone, is properly verified.

An integrated GPS module offers precise location tracking and measurement TIME SYNCHRONIZATION.
